Class Of Restriction (COR) Superset Or Subset

بسم الله والحمد لله والصلاة والسلام علي رسول الله وآله وصحبه وإخوانه وسلم

Class Of Restriction (COR) Superset Or Subset

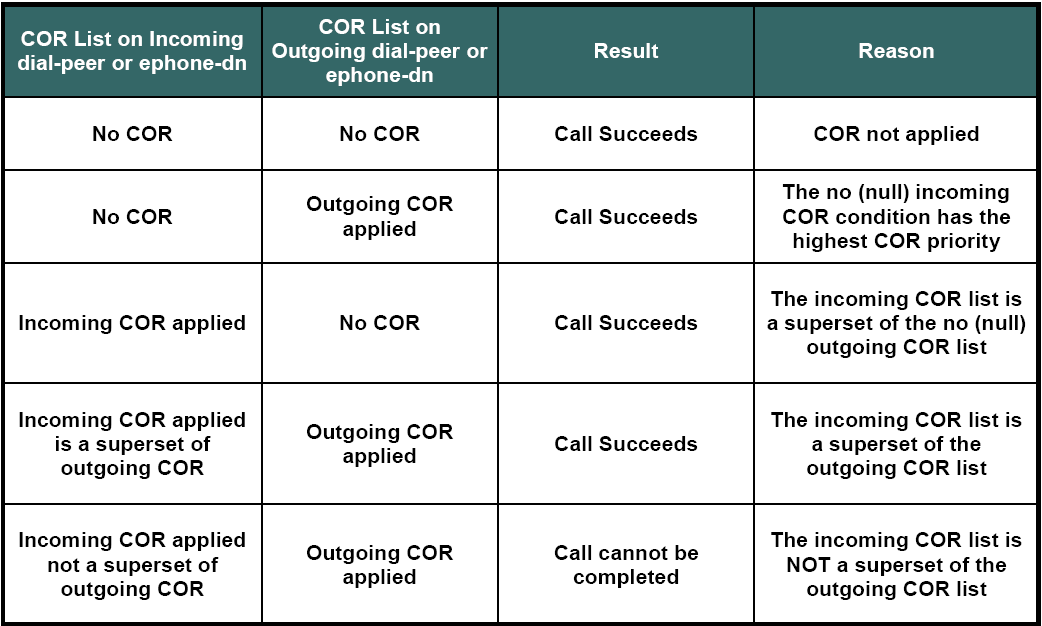

Keep in mind the following rule:

- for a call to be successful the incoming COR must be a superset or equal to the outgoing COR.

- to deny a call the incoming COR must be a subset of the outgoing COR.

Lab Time:



Example 1 : Call fail ( the incoming COR is a subset of the outgoing COR)

R1:

dial-peer cor custom
name sales
name accounting
name laboratory
!
dial-peer cor list sales-out
member sales
member accounting
member laboratory
!
dial-peer cor list sales-in
member sales
member accounting
!
ephone-dn 1
cor incoming sales-in
!
dial-peer voice 1 voip
cor outgoing sales-out

Result:

Example 2 : Call Success (the incoming COR is equal to the outgoing COR)

R1:

dial-peer cor custom
name sales
name accounting
name laboratory
!
dial-peer cor list sales-out
member sales
member accounting
member laboratory
!
dial-peer cor list sales-in
member sales
member accounting
member laboratory
!
ephone-dn 1
cor incoming sales-in
!
dial-peer voice 1 voip
cor outgoing sales-out

Result:

ولا تنسوني والمسلمين من صالح الدعاء

وصلي الله وسلم وبارك علي النبي وآله وصحبه وإخوانه وسلم

Class Of Restriction (COR) Lab Using GNS3

بسم الله والحمد لله والصلاة والسلام علي رسول الله وآله وصحبه وإخوانه وسلم

Class Of Restriction (COR) Lab Using GNS3

- First Keep in mind the following:

Each dial-peer or phone-dn can have one incoming COR list and one outgoing COR list:

- Incoming COR list means: the dial-peer or the phone can initiate calls or not.

- outgoing COR list means: who can call this dial-peer or phone or not.

- If no incoming COR list: this means that the dial-peer or the phone can call any one. Regardless of the outgoing COR setting on the phone called

- if no outgoing COR list: this means that anyone can call this dial-peer or phone regardless if the phone calling has an incoming COR set or not.

- If the incoming COR list is a superset or equal to the outgoing COR list this means that the call will succeed.

- If the incoming COR list is not a superset or equal to the outgoing COR list this means that the call will fail.

- When you begin configuration first you need to configure the outgoing COR.

- To deny a call when you configure the outgoing COR make sure that it is a superset of the incoming COR.

   Now it is Lab time:

 - The Manager can call the Employee but the Employee can not. Also the Employee should call any other dial-peer.

dial-peer cor custom
name employee
name manager
!
dial-peer cor list Manager
member manager
!
dial-peer cor list Employee
member employee
!
ephone-dn 1
cor outgoing Manager
!
ephone-dn 2
cor incoming Employee

- Results:

ولا تنسوني و المسلمين من صالح الدعاء

وصلي الله وسلم وبارك علي النبي وآله وصحبه وإخوانه وسلم

H3C And HP Networking

بسم الله والحمد لله والصلاة والسلام علي رسول الله وآله وصحبه وإخوانه وسلم

H3C And HP  Networking

H3C was initially a joint venture agreement between 3Com and Huawei.
They set up a company called H3C which had a majority control to Huawei however in the agreement 3Com could buy a controlling share a few years later.
In 2007 3Com bought over H3C completely and as such it became an arm of 3Com.
H3C is massive is China and sells enterprise gear which is meant to compete with Cisco.
The interface which the H3C devices use is very similar to the CLI to Cisco with differences in some commands.
By the way All huawei datacom devices use the same os called vrp (versatile Routing Platform) which is very similar to H3C's OS (Comware).
All equipment was rebranded as H3C at this point and as such 3Com on network devices disappeared.
On April 12, 2010, Hewlett-Packard (HP) completed the acquisition of 3Com and the 3Com brand has been disappered all together with a new HP brand covering all the network gear.
However H3C will remain the brand in China as it is a massive brand over there and they don't want to risk losing the market due to a brand name change.

H3C’s O/S, Comware 5 is similar to IOS in its structure and command set, it is not “copied IOS”.
Comware 5 was written from scratch (a complete rewrite from Comware 3).
The drivers are of course different on the various products, but all the features exist in the code on every product,
and Comware 5 does not use a feature set model to unlock them.

The HP ProVision operating system (which is very similar to Cisco's IOS) runs on HP 3500, 5400zl, 6200yl, 6600, and 8200zl Switch Series.
Other HP switches use an operating system that is very similar to the ProVision operating system.

But why am i writing this post today?
as you know my main concern in IT study is: does the vendor has a simulator (emulator will better) or no? because this which makes me continue in the study.
Huwaei and 3COM has a simulator for H3C prouducts which HP now provides this simulator to their partners only. it based on Comware 5:
[H3C] display ver
H3C Comware Platform Software
Comware Software, Version 5.20, Release 9101
Copyright (c) 2004-2010 Hangzhou H3C Tech. Co., Ltd. All rights reserved.
SIMWARE uptime is 0 week, 0 day, 0 hour, 0 minute
This if you are in the situation where you have  HP network project and you have to study for it, it is now available.

I hope that has been informative to you.

ولا تنسوني والمسلمين من صالح الدعاء

وصلي الله وسلم وبارك علي النبي وآله وصحبه وإخوانه وسلم

How to Simulate PSTN Using GNS3

بسم الله والحمد لله والصلاة والسلام علي رسول الله وآله وصحبه وإخوانه وسلم

How to Simulate PSTN Using GNS3



This is my initial CCNA VOICE lab using GNS3. The most important in this post is how to simulate the Public Switched Telephone Network (PSTN). As you know currently GNS3 does not support FXS or FXO ports, so the following configuration showing you how to get around this by Allah’s willing.

So, I have used the following IOS:

(C3745-IPVOICE_IVS-M), Version 12.4(15)T14

It is the same on all routers and the PSTN, this is to decrease the processor load. Because as you know GNS3 uses the ghost image feature which uses a single IOS on all routers from the same type instead of using a dedicated image for each router.

HQ:

voice service voip

 allow-connections h323 to h323

!

interface Loopback0

 ip address 10.10.10.1 255.255.255.255

 h323-gateway voip interface

 h323-gateway voip bind srcaddr 10.10.10.1

!

interface FastEthernet0/0

 ip address 192.168.20.1 255.255.255.0

 speed 100

 full-duplex

!

interface FastEthernet0/1

 ip address 172.17.20.2 255.255.255.252

 speed 100

 full-duplex

!

interface Serial1/1

 ip address 172.16.10.5 255.255.255.252

 serial restart-delay 0

!

interface Serial1/2

 ip address 172.16.10.1 255.255.255.252

 serial restart-delay 0

!

router eigrp 100

 passive-interface FastEthernet0/0

 network 0.0.0.0

 no auto-summary

!

ip route 0.0.0.0 0.0.0.0 172.17.20.1

!

dial-peer voice 2 voip

 destination-pattern 10..

 session target ipv4:172.16.10.2

!

dial-peer voice 3 voip

 destination-pattern 20..

 session target ipv4:172.16.10.6

!

dial-peer voice 1 voip

 destination-pattern .T

 session target ipv4:10.10.10.10

 incoming called-number .

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

telephony-service

 max-ephones 20

 max-dn 20

 ip source-address 192.168.20.1 port 2000

 max-conferences 8 gain -6

 transfer-system full-consult

!

ephone-dn  1  dual-line

 number 3010

!

ephone-dn  2  dual-line

 number 3011

!

ephone  1

 mac-address 000C.29DE.9093

 type CIPC

 button  1:1 2:2

!

BR1:

voice service voip

 allow-connections h323 to h323

!

interface Loopback0

 ip address 10.10.10.2 255.255.255.255

 h323-gateway voip interface

 h323-gateway voip bind srcaddr 10.10.10.2

!

interface FastEthernet0/0

 ip address 192.168.10.1 255.255.255.0

 speed 100

 full-duplex

!

interface FastEthernet0/1

 ip address 172.17.30.2 255.255.255.252

 speed 100

 full-duplex

!

interface Serial1/0

 ip address 172.16.10.10 255.255.255.252

 serial restart-delay 0

!

interface Serial1/2

 ip address 172.16.10.2 255.255.255.252

 serial restart-delay 0

!

router eigrp 100

 passive-interface FastEthernet0/0

 network 0.0.0.0

 no auto-summary

!

ip route 0.0.0.0 0.0.0.0 172.17.30.1

!

dial-peer voice 2 voip

 destination-pattern 30..

 session target ipv4:172.16.10.1

!

dial-peer voice 3 voip

 destination-pattern 20..

 session target ipv4:172.16.10.9

!

dial-peer voice 1 voip

 destination-pattern .T

 session target ipv4:10.10.10.10

 incoming called-number .

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

telephony-service

 max-ephones 20

 max-dn 20

 ip source-address 192.168.10.1 port 2000

 max-conferences 8 gain -6

 transfer-system full-consult

!

ephone-dn  1  dual-line

 number 1010

!

ephone-dn  2  dual-line

 number 1011

!

ephone  1

 mac-address 000C.2909.DB4B

 type CIPC

 button  1:1 2:2

!

BR2:

voice service voip

 allow-connections h323 to h323

!

interface Loopback0

 ip address 10.10.10.3 255.255.255.255

 h323-gateway voip interface

 h323-gateway voip bind srcaddr 10.10.10.3

!

interface FastEthernet0/0

 ip address 192.168.40.1 255.255.255.0

 speed 100

 full-duplex

!

interface FastEthernet0/1

 ip address 172.17.10.2 255.255.255.252

 speed 100

 full-duplex

!

interface Serial1/0

 ip address 172.16.10.9 255.255.255.252

 serial restart-delay 0

!

interface Serial1/1

 ip address 172.16.10.6 255.255.255.252

 serial restart-delay 0

!

router eigrp 100

 passive-interface FastEthernet0/0

 network 0.0.0.0

 no auto-summary

!

ip route 0.0.0.0 0.0.0.0 172.17.10.1

!

dial-peer voice 2 voip

 destination-pattern 10..

 session target ipv4:172.16.10.10

!

dial-peer voice 3 voip

 destination-pattern 30..

 session target ipv4:172.16.10.5

!

dial-peer voice 1 voip

 destination-pattern .T

 session target ipv4:10.10.10.10

 incoming called-number .

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

telephony-service

 max-ephones 20

 max-dn 20

 ip source-address 192.168.40.1 port 2000

 max-conferences 8 gain -6

 transfer-system full-consult

!

ephone-dn  1  dual-line

 number 2010

!

ephone-dn  2  dual-line

 number 2011

!

ephone  1

 mac-address 000C.291A.F96B

 type CIPC

 button  1:1 2:2

!

PSTN:

voice service voip

 allow-connections h323 to h323

 allow-connections h323 to sip

 allow-connections sip to h323

 allow-connections sip to sip

!

interface Loopback0

 ip address 10.10.10.10 255.255.255.255

 h323-gateway voip interface

 h323-gateway voip bind srcaddr 10.10.10.10

!

interface FastEthernet0/0

 ip address 192.168.1.99 255.255.255.0

 speed 100

 full-duplex

!

interface FastEthernet1/0

 no switchport

 ip address 172.17.20.1 255.255.255.252

 speed 100

!

interface FastEthernet1/1

 no switchport

 ip address 172.17.30.1 255.255.255.252

 speed 100

!

interface FastEthernet1/2

 no switchport

 ip address 172.17.10.1 255.255.255.252

 speed 100

!

ip route 10.10.10.1 255.255.255.255 172.17.20.2

ip route 10.10.10.2 255.255.255.255 172.17.30.2

ip route 10.10.10.3 255.255.255.255 172.17.10.2

!

dial-peer voice 1 voip

 incoming called-number .

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

dial-peer voice 2 voip

 description *** HQ ***

 destination-pattern 30..

 session target ipv4:10.10.10.1

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

dial-peer voice 3 voip

 description *** BR1 ***

 destination-pattern 10..

 session target ipv4:10.10.10.2

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

dial-peer voice 4 voip

 description *** BR2 ***

 destination-pattern 20..

 session target ipv4:10.10.10.3

 dtmf-relay h245-alphanumeric

 codec g711ulaw

 no vad

!

telephony-service

 max-ephones 20

 max-dn 20

 ip source-address 192.168.1.99 port 2000

 max-conferences 8 gain -6

 transfer-system full-consult

!

ephone-dn  1  dual-line

 number 125

!

ephone-dn  2  dual-line

 number 3645258

!

ephone-dn  3  dual-line

 number 4256821

!

ephone-dn  4  dual-line

 number 5425681

!

ephone  1

 mac-address 00E0.4C04.E85F

 type CIPC

 button  1:1 2:2 3:3 4:4

!

Making some rings between PSTN and the internal:

ولا تنسوني والمسلمين من صالح الدعاء

وصلي الله وسلم وبارك علي النبي وآله وصحبه وإخوانه وسلم
